Electrical Safety in Medical Technology: A Comparison of IEC 60601-1 and IEC 61010-1

Why Does Electrical Safety Matter in Medical Technology?

Electrical safety is of the utmost importance in medical technology because medical devices, which range from simple diagnostic tools to complex life support systems, interact directly with patients and medical personnel. One of the greatest dangers posed by these devices is electrical in nature. To protect patients and users, fundamental standards like IEC 60601-1 and IEC 61010-1 have been created to serve as universal benchmarks for safety and to minimise risks from electric shock, mechanical hazards, radiation, overheating, fire and explosions. The correct application of these standards is essential for the development and approval of medical devices (MDR) and in-vitro diagnostics (IVDs).

What is IEC 60601-1?

IEC 60601-1 is the fundamental standard for the basic safety and essential performance of medical electrical equipment. It’s the primary standard within the IEC 60601 series, which is an internationally recognised set of standards for the design, construction and testing of electrical medical devices. The standard was developed to minimise risks from electric shock, mechanical hazards, radiation, overheating, fire and explosions. The aims of this standard are to ensure that these devices don’t pose a risk to patients or healthcare professionals during normal use or when a single fault occurs. This standard is not a static specification but a living document that is regularly revised and adapted to technological advancements.

What are Core Principles of IEC 60601-1?

Compliance with IEC 60601-1 is critical for medical devices for several key reasons:

● Patient and User Safety: It sets requirements to protect patients and users from hazards like electrical shock, mechanical failures and excessive heat.

● Global Market Access: Compliance is often a mandatory prerequisite for regulatory approval in major markets like the EU and the US, which streamlines global sales.

● Risk Management: It requires manufacturers to follow a formal risk management process to identify and mitigate potential hazards.

● Essential Performance: The standard ensures that the device’s key functions, crucial for its clinical use, remain safe and effective under fault conditions.

How Does IEC 61010-1 Apply to Laboratory and IVD Equipment?

In contrast to IEC 60601-1, the standard IEC 61010-1 is the fundamental safety standard for electrical equipment for measurement, control and laboratory use. This standard is crucial for devices intended not for direct patient contact, but for use in a professional environment, such as a laboratory.

For in vitro diagnostics (IVDs), which analyse biological samples outside the human body, IEC 61010-1 is the primary harmonised standard under the In Vitro Diagnostic Medical Devices Regulation (IVDR). It focuses on the safety of the user and the laboratory environment, not the patient.

For specific IVD devices, the supplementary standard IEC 61010-2-101 must also be applied. This builds on the requirements of IEC 61010-1 and adapts them to the unique risks of IVDs, such as handling hazardous biological material.

What is the Difference Between IEC 60601-1 and IEC 61010-1?

The main difference lies in the intended use of the device and the party to be protected:

● IEC 60601-1: applies to medical electrical equipment that has direct or indirect contact with a patient, focusing on patient safety and “essential performance.”

● IEC 61010-1: In contrast, IEC 61010-1 is for general electrical equipment for measurement, control and laboratory use, with a primary focus on user and operator safety.

Manufacturers must carefully determine which standard is applicable to their product to ensure regulatory compliance and safety. Choosing between these two standards is a critical first step in the product development process.

What Role do IEC 60601-1 and IEC 61010-1 Play in Regulatory Approval Worldwide?

The IEC 60601-1 and IEC 61010-1 standards are crucial tools for demonstrating compliance with regulatory requirements worldwide. In the European Union, they are harmonised standards under the Medical Device Regulation (MDR) and the In Vitro Diagnostic Medical Devices Regulation (IVDR).

● IEC 60601-1 is for medical devices and helps manufacturers prove their product meets the MDR’s safety requirements.
● IEC 61010-1 is for in vitro diagnostic (IVD) devices and helps show compliance with the safety requirements of the IVDR.

By meeting the requirements of the relevant standard, manufacturers can presume conformity with the General Safety and Performance Requirements (GSPR) of the respective regulation. These standards are also recognised globally and are used to meet the safety requirements of regulatory bodies such as the U.S. Food and Drug Administration (FDA) and Health Canada. They therefore serve as key standards for market access in numerous regions, not just the EU.

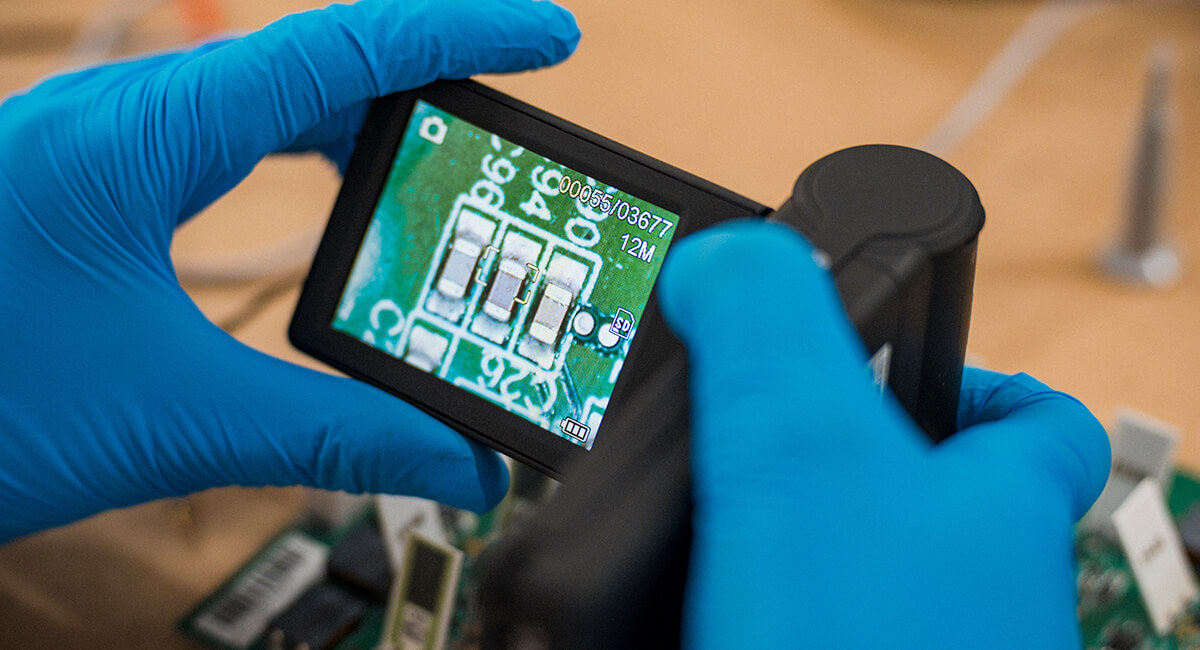

Why are Clearances and Creepage Distances Vital for Electrical Safety?

Within electronic devices, clearances and creepage distances are crucial design features for preventing electrical hazards. They represent physical barriers that prevent current from flowing along unintended paths.

● Clearance: Clearance is the shortest path through the air between two conductive parts. It is a barrier that prevents flashover or arcing. Its required size depends on the operating voltage and atmospheric pressure.

● Creepage Distance: Creepage distance is the shortest path along the surface of an insulating material between two conductive parts. It prevents conductive contamination or moisture from accumulating on the surface of the insulating material, which could cause a short circuit or tracking. The required size depends on the operating voltage, the insulating material and the pollution degree of the environment.

How do MOPP and MOOP Affect Electrical Safety Requirements?

The IEC 60601-1 standards use the concepts of MOPP and MOOP to define different safety requirements for clearances and creepage distances:

● MOPP (Patient Protection): Since patients are often more vulnerable and in direct contact with the device, the requirements for MOPP are significantly stricter. The required clearances and creepage distances for MOPP are larger than for MOOP.

For example, one MOPP requirement can demand greater distances than the same requirement for an operator (MOOP).

● MOOP (Operator Protection): These requirements are generally less strict than MOPP.

Manufacturers must ensure that the clearances and creepage distances in their product design comply with the specific requirements of the chosen protection measure (MOPP or MOOP) to achieve the required electrical safety.

How do Environmental Conditions and Altitude Impact Device Safety?

Environmental conditions and altitude impact device safety by altering the insulating properties of air and the effectiveness of cooling. This directly affects the required electrical clearance and creepage distances.

Environmental Conditions (Pollution)

Electrical safety standards classify environments by Pollution Degree (1-4) based on the level of contamination (dust, moisture). A higher pollution degree requires a longer creepage distance along the surface of insulating materials to prevent conductive paths from forming, which could lead to a short circuit or fire.

Altitude

As altitude increases, air pressure and density decrease. This makes air a less effective insulator. To compensate, required clearance distances (through the air) must be increased to prevent dangerous arcing between components. Safety standards provide specific correction factors for devices used at high altitudes. Additionally, less dense air reduces the efficiency of cooling systems.

Why Should MedTech Companies Prioritise IEC Standards in Device Development?

Adhering to constantly evolving standards such as IEC 60601-1 and IEC 61010-1 allows medical technology manufacturers to build trust, ensure compliance, and sustainably guarantee safety in healthcare. Prioritising these IEC standards throughout a product’s entire lifecycle is not just important, it is foundational.

These standards are more than technical guidelines; they are the bedrock for a medical device’s safety and success. They ensure patient and user safety through robust risk management and protective mechanisms. They are the key to global market access, as compliance is a mandatory prerequisite for regulatory approval in the world’s most critical markets.

To substantiate compliance, it is crucial for manufacturers to create an insulation diagram of all clearance and creepage distances. This detailed technical document must illustrate these distances under both normal and single fault conditions, while also accounting for environmental factors and altitude. The safety and integrity of the device’s design can be directly proven and justified through this insulation diagram.

Ultimately, viewing these standards as a strategic opportunity, rather than a mere regulatory burden, empowers companies to build a reputation for excellence. Proactive engagement with safety and quality from the design phase is an investment in long-term success, protecting both the business and, most importantly, the end-user.
